Hot Sale Tankless Domestic Biogas Instant Water Heater for Shower Water
Product Attributes
| After-sales service provided |
Free spare parts |
| Warranty |
1 Year |
| Application |
Hotel, garage, Household |
| Power source |
Battery, Gas |
| App-controlled |
NO |
| Storage / Tankless |
Instant / Tankless |
| Installation |
Wall Mounted |
| Housing material |
Stainless Steel |
| Power (w) |
12000 |
| Voltage (v) |
3 |
| Brand |
haobang |
| Volume (litre) |
Other |
| Smoke extraction method |
Flue Type |
| Product name |
domestic instant gas water heater |
| Gas type |
NG |
| Color |
White |
| Exhaust way |
Open Flue |
| Advantage |
Low Water Pressure Starting |
| Type |
Tankless |
| Usage |
Gas Home Appliance |
| Water Pressure Start |
0.02Mpa-0.8Mpa |
| Panel |
Stainless Steel Panel |
| Display |
LED Displayer Optional |
Product Description
We are a professional manufacturer of gas water heaters certified by Alibaba. Our service is committed to helping customers establish product advantages locally.
Key Features
- Low water pressure startup function
- Instant water heating, 3-5 seconds supply hot water
- Double ignition pin, Water control automatic impulse ignition by Water-gas interlock valve
- Flame out failure protection, Anti-dry combustion
- Over heating and 20 minutes timer protection device
- Panel in new and good design, Metal with coating/glass/stainless steel optional
- Winter-summer switch for gas saving
- Good pulse ignitor to keep the battery functional in one year
- Excellent heat exchanger absorbs heat more efficiently
- Special Cold and hot water convert
Product Specifications
| Capacity |
6L/Min |
| Exhaust Type |
Flue Exhaust Type |
| Connection Size |
G1/2" (Gas/Inlet/Outlet) |
| Efficiency |
Over 84% |
| Gas Type |
LPG / NG (Optional) |
| Product Size |
440*300*120 MM |
| Gas Pressure |
LPG(2800Pa)/NG(2000Pa) |
| Packing Size |
520*335*180 MM |
| Working Water Pressure |
0.025-0.8 Mpa |
| N.W/G.W |
4.5/5.5 kg |
| Rated Heat Input |
12KW |
| Other Optional Size |
6L/7L/8L/10L/12L |
| Display |
LED/LCD Temperature Display Optional |
| Bottom Shell Series |
T serie |
| Spare parts |
Knob Battery box Pulse Thermostat Switch Carton |
| Protection |
1) Over water pressure protection 2) Anti-dry burning protection 3) Over heat protection 4) Flame failure protection |
Product Loading Quantity
| Series |
Hot Water Supply L/Min △t 25°C |
Rated Heat Load |
Product Size(mm) |
Packing Size(mm) |
Loading Quantity 20GP/40HQ(PCS) |
| T |
6L |
12KW |
440*300*120 |
520*335*180 |
900/2150 |
| T |
7L |
14KW |
500*300*145 |
610*355*190 |
680/1640 |
| T |
8L |
16KW |
520*320*145 |
610*370*205 |
610/1460 |
| T |
10L |
20KW |
590*340*145 |
675*385*200 |
565/1290 |
| T |
12L |
24KW |
620*340*145 |
705*385*200 |
520/1250 |
The bottom shell of gas water heater products is divided into two series:
T series: Glass panel, stainless steel panel optional
S series: White/black/silver/gold metal with coated panel, painted panel optional
A variety of styles can meet the customer's requirements for appearance.
Product Customization Service

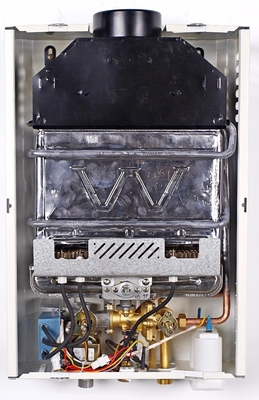

Heat Exchanger: Tin-coated copper / Oxygen-free copper optional. The difference between the two heat exchangers is corrosion resistance and thermal efficiency.
Heat exchanger weight: 1/1.8/2.1/2.5/3.0/3.5 Kg
Valve: Zero water pressure valve / other water pressure valve optional. Different altitudes cause inconsistent water pressure. Our solution is to install zero water pressure valves or other water pressure valves in gas water heaters for regions.
Knobs and displays: Customized knobs / LED display / LCD display optional. Choose different knobs and displays with panels to create a unique gas water heater of your brand.
Customer Reviews
Our Company
Zhongshan Hobun Electric&Gas Appliances Co.,Ltd. is a manufacturer specializing in Electric&Gas Appliances since 1997. Located in Dongfeng Town, Zhongshan City.
Haobang is one of the most professional water heater manufacturers known for its good quality customized products. In Haobang, a variety of colors, styles, and sizes of products are available to meet the client's unique requirements.
After more than 20 years of development, Haobang Group has three factories that produce gas water heaters, instant electric water heaters, gas boilers and gas stoves. Our company covering over 10,000 square meters, annual output over 200,000 units.
We have certificate of ISO9001, CE, COC, CCC etc. have experienced and skillful engineers and works. Because of our good quality and profession, we got good reputation from our customer and have our product exporting over 50 countries like Russia, Romania, Mexico, America, Australia and so on.
Haobang Group has the scale to ensure timely delivery and the flexibility to reduce manufacturing lead times to as short as 30 days.
Workshop
Certifications
Exhibition
Packing & Shipping
Package
We have experienced designers to provide gas water heater product packaging design services to enhance customers' product influence in the local market.
Loading
We have experienced loading workers to make reasonable use of space and improve loading quantity.
FAQ
Q1: Are you manufacture or trading company?
We are a manufacturer specializing in gas water heater, gas stove, gas boiler, established in 1997.
Q2: What is your MOQ?
100pcs /per model
Q3: How long you can offer a sample for my inspection?
Depends on models, Sample 5-20days
Q4: Is OEM is acceptable?
Yes, OEM is welcome.
Q5: What is the delivery time?
The delivery time is 30-35 days after order was confirmed and received deposit.
Q6: What is your payment term?
T/T 30% deposit in advance 70% balance against the copy of B/L
Shipping port: Zhonshan/Guangzhou/Shenzhen
More question please contact us!!!
