High Energy Efficiency Thermostat Constant Temperature App-Controlled Flue Gas Water Heater and LPG Water Heater

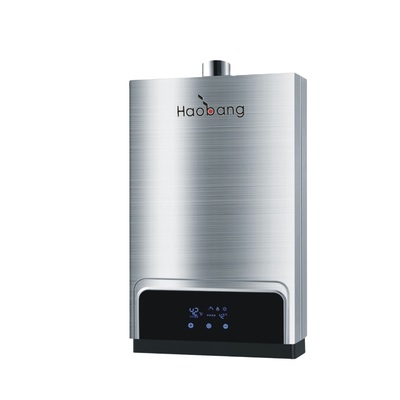

Large Image : High Energy Efficiency Thermostat Constant Temperature App-Controlled Flue Gas Water Heater and LPG Water Heater

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HAOHANG/OEM
Certification:	ISO9001:2015
Model Number:	JSQ20-S01

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	US$88-95

Contact Now

Detailed Product Description

Power Source:	Battery, Gas	Power:	20000W
Voltage:	110V	Gas Type:	NG(2000Pa)/LPG(2800Pa)
Water Pressure:	0.025Mpa-0.8Mpa	Heat Efficiency:	Over 84%
Heat Exchanger:	Copper	Capacity:	10L/Min
Nominal Heat Input:	20KW	Chimney Size:	60MM
Inlet/outlet Diameter:	1/2''G	Body Size:	560350145mm
Packing Size:	800505225mm	Net Weight:	10kg
Gross Weight:	12kg
Highlight:	High Energy Efficiency Flue Gas Water Heater , Thermostat Constant Temperature LPG Water Heater , App-Controlled Gas Water Heater

10L to 18L High Energy Efficiency Instant LPG Thermostat Constant Temperature Water Heaters

Instant Gas Water Heater Features

Low water pressure startup function
Instant heating - delivers hot water in 3-5 seconds
Double ignition pin with water-gas interlock valve for automatic impulse ignition
Comprehensive safety features including flame failure protection and anti-dry combustion
Overheating protection with 20-minute timer safety device
Modern panel design with metal coating, glass, or stainless steel options
Winter-summer switch for optimal gas efficiency
High-quality pulse ignitor with 1-year battery life
Advanced heat exchanger for maximum thermal efficiency
Optional ODS (Oxygen Depletion Sensor) available
Special cold and hot water conversion system

Technical Specifications

Model No.	JSQ-10L
Capacity	10L/Min
Gas Type	LPG
Gas Pressure	2800Pa
Working Water Pressure	0.025-0.8Mpa
Nominal Heat Input	20KW
Chimney Size	60MM
Starting Voltage	110V or 220V
Inlet/Outlet Connections	1/2"G
Unit Dimensions	560×350×145mm
Packing Size	800×505×225mm
Net/Gross Weight	10/12kg
Loading Quantity	340/810pcs (20GP/40HQ)

Optional Accessories

About Our Company

Zhongshan Hobun Electric & Gas Appliances Co., Ltd. is a professional manufacturer of electric and gas appliances established in 1997. Located in Dongfeng Town, Zhongshan City, our 7,000 square meter facility produces over 200,000 units annually.

Our product range includes gas water heaters, gas boilers, and gas stoves. We hold ISO9001, CE, COC, and CCC certifications, and our products are exported to more than 50 countries including Russia, Romania, Mexico, USA, and Australia.
